CORDA DACCORD
Technical details:

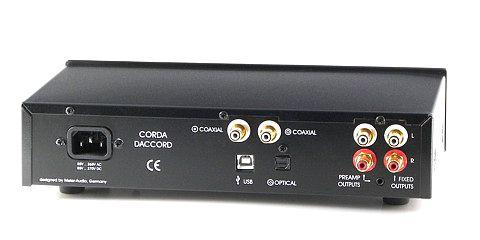

2 coaxial S/PDIF inputs (Cinch)
1 optical S/PDIF input (Toslink)
1 USB-input port (24bit/192kHz)
All inputs electrically isolated using pulse transformers.
1 pair of outputs with fixed output level.
..........Output level 2.2 Vrms
1 pair of volume-controlled preamplifier outputs.
..........Output level: 6.0 Vrms / High gain
...............................2,4 Vrms / Medium gain
...............................0.9 Vrms / Low gain
Gold-plated output jacks
Silver plated heavy duty switches
Separate powerlines for the analog circuitry and the digital circuitry
All voltage lines double or three-fold regulated
Wide-range powerinput: 85..265V AC / 85..370V DC
Built-in groundloop breaker

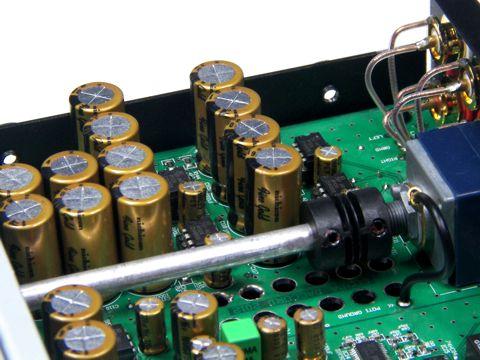

Low impedance audiophile electrolytic buffer capacitors (Nichicon Fine Gold). Buffer capacity > 30.000 uF
Polystyrol and polypropylen (Vishay) capacitors in the signal path

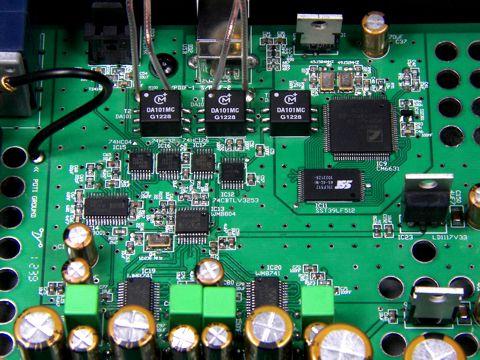

C-MEDIA CM6631 USB-to-S/PDIF receiver (24bit/192kHz)
WOLFSON WM8804 S/PDIF receiver
Three IQD temperature compensated 2.5 ppm crystal oscillators (TCXO's) for minimal jitter.
2 pieces WOLFSON WM8741 D/A converter-chip in dual-mono mode
Sampling frequencies / resolution
..........32, 44, 48, 88, 96, 192 kHz / 16, 20, 24 bit
AD797 opamps biased into class-A
ALPS RK27 potentiometer for volume-control
Extended natural crossfeed filter
3 intensity levels for the crossfeed signal.
Star-grounding
Weight: 1.7 kg
Size: 28.0 x 17.5 x 6.7 cm
Power uptake: 6 Watts
2 coaxial S/PDIF inputs (Cinch)
1 optical S/PDIF input (Toslink)
1 USB-input port (24bit/192kHz)
All inputs electrically isolated using pulse transformers.
1 pair of outputs with fixed output level.
..........Output level 2.2 Vrms
1 pair of volume-controlled preamplifier outputs.
..........Output level: 6.0 Vrms / High gain
...............................2,4 Vrms / Medium gain
...............................0.9 Vrms / Low gain
Gold-plated output jacks
Silver plated heavy duty switches
Separate powerlines for the analog circuitry and the digital circuitry
All voltage lines double or three-fold regulated
Wide-range powerinput: 85..265V AC / 85..370V DC
Built-in groundloop breaker
Low impedance audiophile electrolytic buffer capacitors (Nichicon Fine Gold). Buffer capacity > 30.000 uF
Polystyrol and polypropylen (Vishay) capacitors in the signal path
C-MEDIA CM6631 USB-to-S/PDIF receiver (24bit/192kHz)
WOLFSON WM8804 S/PDIF receiver
Three IQD temperature compensated 2.5 ppm crystal oscillators (TCXO's) for minimal jitter.
2 pieces WOLFSON WM8741 D/A converter-chip in dual-mono mode
Sampling frequencies / resolution
..........32, 44, 48, 88, 96, 192 kHz / 16, 20, 24 bit
AD797 opamps biased into class-A
ALPS RK27 potentiometer for volume-control
Extended natural crossfeed filter
3 intensity levels for the crossfeed signal.
Star-grounding
Weight: 1.7 kg
Size: 28.0 x 17.5 x 6.7 cm
Power uptake: 6 Watts

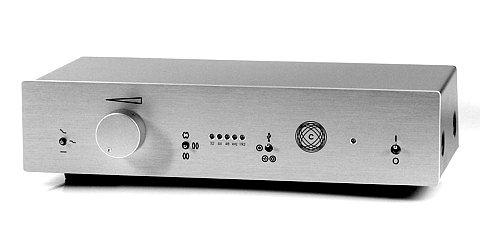

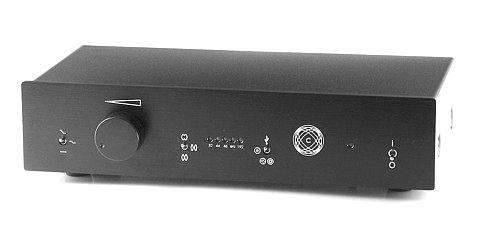

The DACCORD is a modern Digital-to-Analog converter with integrated crossfeed and volume controlled outputs.

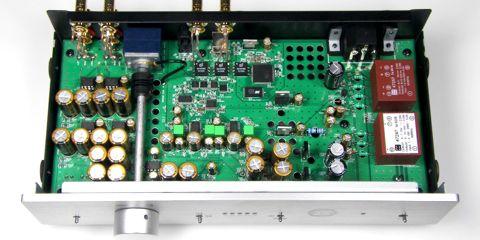

Inside two top-of-the-line Wolfson D/A converter chips in dual-mono mode, a large battery of audiophile capacitors, ultra-fast opamps in class-A, high-precision oscillators (TCXO's) and many other very high-quality components are found that are exemplary for this price-class.
Two coxial, one optical, as well as an USB-input allow for easy connection of any digital source, including your computer. A variable output allows to directly drive a poweramplifier or a pair of active loudspeakers.
The converter uses the Wolfson WM8804 S/PDIF receiver chip which, instead of a conventional analog PLL, uses its own separate high-precision quartz-clock. Thus much higher jitter reduction can be achieved then with more traditional receivers.
A unique feature of the DACCORD is the built-in extended natural crossfeed-filter. Whereas the functionality of the natural crossfeed filter as found in our headphone amplifiers is limited to frequencies upto around 800 Hz this new filter has a much wider bandwidth and now covers the whole range from DC..2000 Hz in which the human ear is sensitive for directional information. The result is a more stable imaging when the crossfeed is activated whilst listening by headphone.
Inside two top-of-the-line Wolfson D/A converter chips in dual-mono mode, a large battery of audiophile capacitors, ultra-fast opamps in class-A, high-precision oscillators (TCXO's) and many other very high-quality components are found that are exemplary for this price-class.
Two coxial, one optical, as well as an USB-input allow for easy connection of any digital source, including your computer. A variable output allows to directly drive a poweramplifier or a pair of active loudspeakers.
The converter uses the Wolfson WM8804 S/PDIF receiver chip which, instead of a conventional analog PLL, uses its own separate high-precision quartz-clock. Thus much higher jitter reduction can be achieved then with more traditional receivers.
A unique feature of the DACCORD is the built-in extended natural crossfeed-filter. Whereas the functionality of the natural crossfeed filter as found in our headphone amplifiers is limited to frequencies upto around 800 Hz this new filter has a much wider bandwidth and now covers the whole range from DC..2000 Hz in which the human ear is sensitive for directional information. The result is a more stable imaging when the crossfeed is activated whilst listening by headphone.
